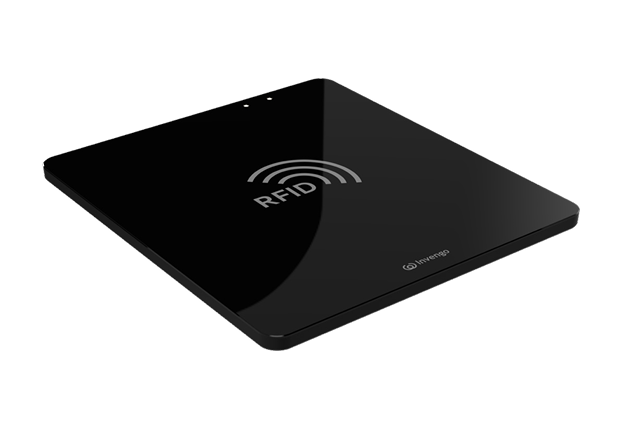

XC-RT739-B Tablets RFID Reader

The Invengo XC-RT739-B Tablets RFID Reader features an Impinj E710 chip, powerful reading and writing algorithms, strong multi-label reading ability, strong penetration ability, and a small misreading area. Designed for desktop inventory checking, self-service settlement, and cashier applications.

XC-RT739-B

Overview

The Invengo XC-RT739-B Tablets RFID Reader adopts an advanced architecture design and powerful reading and writing algorithm. Equipped with an Impinj E710 chip and a near-field antenna, the reader provides strong multi-label reading capability, strong penetration ability, and a small misreading area. It is designed for desktop inventory checking, self-service settlement, cashier applications, and a wide range of retail, asset management, logistics, supply chain, warehouse, textile, and library applications.

Key Specifications

RFID Protocol EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C

RFID Chip Impinj E710

Transmit Power 0–33 dBm

Frequency Range FCC: 902.75–927.25 MHz / EU: 865.7–867.5 MHz / CN: 920.625–924.375 MHz

Reading Speed ≥ 400 times/second

Reading Distance 0–100 cm

Antenna Type Near-field antenna

Dimensions 390 × 430 × 20 mm ± 1 mm

Weight 3.0 kg

Material High-hardness aluminium profile outer frame with tempered glass panel

External Port Type-C

Power Supply DC 5V 4A

Indicators LED indicator light and buzzer

Operating Temperature -20°C to 50°C

Storage Temperature -40°C to 70°C

Operating Humidity 5%–95% RH, non-condensing

OS Support Windows and Android

SDK SDK provided for development
